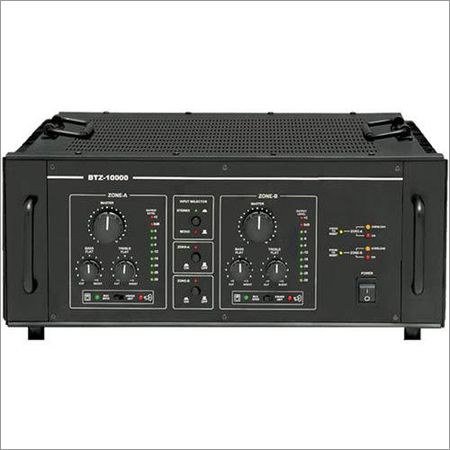

Two Zone Amplifiers

Two Zone Amplifiers
Two Zone Amplifiers
Product Code : 19
Product Description

We are a noteworthy organization in the domain, engaged in providing a high quality range of Two Zone Amplifiers. These amplifiers are designed and manufactured from premium quality components procured from reliable vendors of the market. Further, these amplifiers are well-reckoned in the global market for their attributes like high performance, less maintenance, energy efficiency and longer service life. Available in different specifications as per the application requirements of the clients, these Two Zone Amplifiers are offered at very affordable rates.


  • Stereo music input for DJ programs.
  • Facilitates connection and operation of two separate groups of speakers simultaneously mode
  • Ideal for places of worship
  • Line input & output on each zone for connecting to a mixer and booster amplifier respectively
  • Box speaker/driver unit selector switch for each zone
  • Bass boost defeated at driver unit position for safer operation of driver units
  • Resettable circuit breaker for protection against overload and short circuit
  • Zone on/off facility
  • Output levels of each zone can be set independently to desired levels and the zones can be switched on/off without disturbing the volume settings
  • Instant transfer to dc power (car battery) if ac power fails
  • Bar graph signal display


  • Power output: - 750W + 750W max. , 500W + 500W rms at 10% thd, 450W + 450W rms at 5% thd, 415W + 415w rms at 2% thd
  • Output regulation: - 2 db, no load to full load at 1khz
  • Input channels mono 2 — 200mv/100K
  • Stereo L/R 200mv/100k, line L/R 1V/50K
  • Frequency response: - 50-15,000hz ±3db
  • Signal to noise ratio: - 60db
  • Tone controls:-bass: ±10db at 100HZ, treble: ±10db at 10khz
  • Outputs: - line 1V/1K
  • Speaker outputs: - 4, 8, 70v & 100v for each zone
  • Power supply: - ac: 220-240v 50/60 hz dc: 36v (3×12v car battery)
  • Power consumption:-ac: 2000VA DC: 16A
  • Dimension:-W510 — h220 — d440 mm
  • Weight: 40. 0kg
